009 Java Android Program to Demonstrate the Sound Button Application

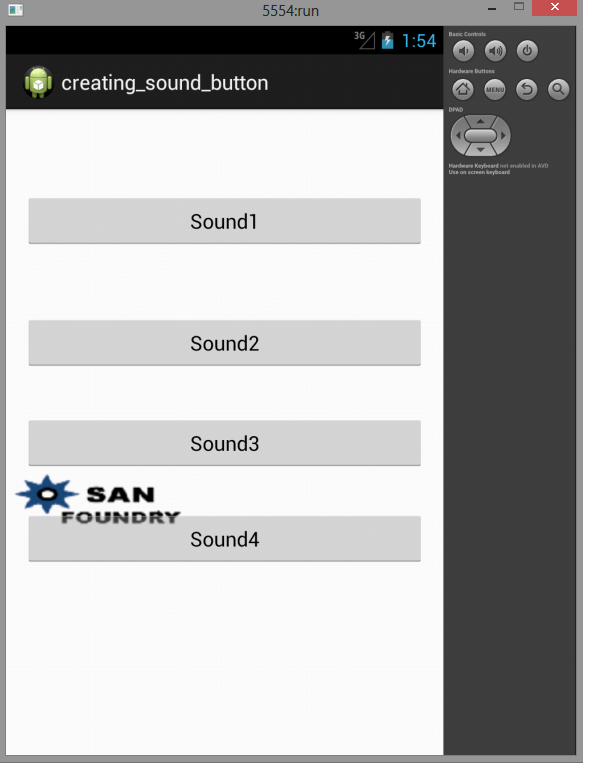

Here is source code of the Program to demonstrate a Sound Button Application. The program is successfully compiled and run on a Windows system. The program output is also shown below.
Introducing MediaPlayer class to play sound via click on button.
package com.example.creating_sound_button;
import android.media.MediaPlayer;
import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;
import android.view.View;
import android.widget.Button;
public class MainActivity extends Activity {
MediaPlayer button_sound;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
Button b1 = (Button) findViewById(R.id.button1);
Button b2 = (Button) findViewById(R.id.button2);
Button b3 = (Button) findViewById(R.id.button3);
Button b4 = (Button) findViewById(R.id.button4);
b1.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// TODO Auto-generated method stub
button_sound = MediaPlayer.create(MainActivity.this,
R.raw.but_click);
button_sound.start();
}
});
b2.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// TODO Auto-generated method stub
button_sound = MediaPlayer.create(MainActivity.this,
R.raw.sound1);
button_sound.start();
}
});
b3.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// TODO Auto-generated method stub
button_sound = MediaPlayer.create(MainActivity.this,
R.raw.sound2);
button_sound.start();
}
});
b4.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// TODO Auto-generated method stub
button_sound = MediaPlayer.create(MainActivity.this,
R.raw.sound3);
button_sound.start();
}
});
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.main, menu);
return true;
}
@Override
protected void onPause() {
// TODO Auto-generated method stub
super.onPause();
}
}
Xml
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingBottom="@dimen/activity_vertical_margin"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
tools:context=".MainActivity"
android:background="@drawable/background">
<Button
android:id="@+id/button1"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_alignParentLeft="true"
android:layout_alignParentTop="true"
android:layout_marginTop="58dp"
android:text="Sound1" />
<Button
android:id="@+id/button2"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_alignLeft="@+id/button1"
android:layout_below="@+id/button1"
android:layout_marginTop="59dp"
android:text="Sound2" />
<Button
android:id="@+id/button4"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_alignLeft="@+id/button3"
android:layout_below="@+id/button3"
android:layout_marginTop="36dp"
android:text="Sound4" />
<Button
android:id="@+id/button3"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_alignLeft="@+id/button2"
android:layout_below="@+id/button2"
android:layout_marginTop="40dp"
android:text="Sound3" />
</RelativeLayout>
Introducing MediaPlayer class to play sound via click on button.
package com.example.creating_sound_button;
import android.media.MediaPlayer;
import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;
import android.view.View;
import android.widget.Button;
public class MainActivity extends Activity {
MediaPlayer button_sound;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
Button b1 = (Button) findViewById(R.id.button1);
Button b2 = (Button) findViewById(R.id.button2);
Button b3 = (Button) findViewById(R.id.button3);
Button b4 = (Button) findViewById(R.id.button4);
b1.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// TODO Auto-generated method stub
button_sound = MediaPlayer.create(MainActivity.this,
R.raw.but_click);
button_sound.start();
}
});
b2.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// TODO Auto-generated method stub
button_sound = MediaPlayer.create(MainActivity.this,
R.raw.sound1);
button_sound.start();
}
});
b3.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// TODO Auto-generated method stub
button_sound = MediaPlayer.create(MainActivity.this,
R.raw.sound2);
button_sound.start();
}
});
b4.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// TODO Auto-generated method stub
button_sound = MediaPlayer.create(MainActivity.this,
R.raw.sound3);
button_sound.start();
}
});
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.main, menu);
return true;
}
@Override
protected void onPause() {
// TODO Auto-generated method stub
super.onPause();
}
}
Xml
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingBottom="@dimen/activity_vertical_margin"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
tools:context=".MainActivity"
android:background="@drawable/background">
<Button
android:id="@+id/button1"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_alignParentLeft="true"
android:layout_alignParentTop="true"
android:layout_marginTop="58dp"
android:text="Sound1" />
<Button
android:id="@+id/button2"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_alignLeft="@+id/button1"
android:layout_below="@+id/button1"
android:layout_marginTop="59dp"
android:text="Sound2" />
<Button
android:id="@+id/button4"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_alignLeft="@+id/button3"
android:layout_below="@+id/button3"
android:layout_marginTop="36dp"
android:text="Sound4" />
<Button
android:id="@+id/button3"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_alignLeft="@+id/button2"
android:layout_below="@+id/button2"
android:layout_marginTop="40dp"
android:text="Sound3" />
</RelativeLayout>
