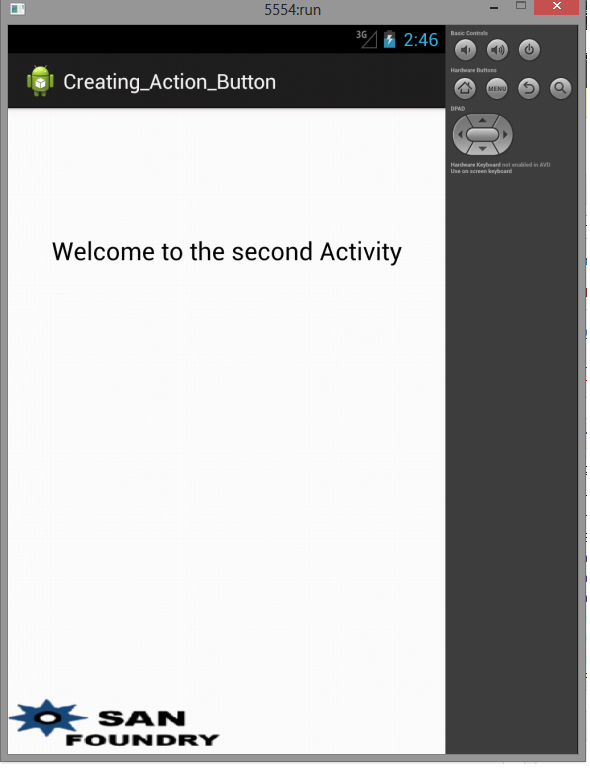

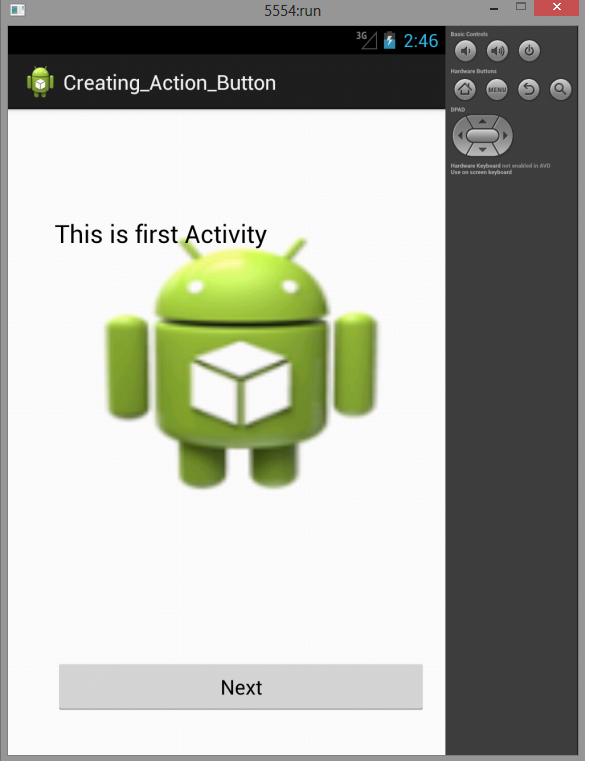

Here is source code of the Program to Create an Action Button by Implementing on Click Listener. The program is successfully compiled and run on a Windows system using Eclipse Ide. The program output is also shown below.

Main Activity


package com.example.creating_action_button;

import android.os.Bundle;
import android.app.Activity;
import android.content.Intent;
import android.view.Menu;
import android.view.View;
import android.widget.Button;

public class MainActivity extends Activity {

@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
Button next = (Button) findViewById(R.id.next);
next.setOnClickListener(new View.OnClickListener() {

@Override
public void onClick(View v) {
// TODO Auto-generated method stub
startActivity(new Intent("com.example.creating_action_button.second"));
// finish();
}
});
}

@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.main, menu);
return true;
}

}

<strong>Second_Activity</strong>


package com.example.creating_action_button;

import android.app.Activity;
import android.os.Bundle;

public class second_activity extends Activity {

@Override
protected void onCreate(Bundle savedInstanceState) {
// TODO Auto-generated method stub
super.onCreate(savedInstanceState);
setContentView(R.layout.second_activity);
}
}

<strong>Xml</strong>

<strong>Main</strong>


<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingBottom="@dimen/activity_vertical_margin"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
tools:context=".MainActivity" >

<TextView
android:id="@+id/textView1"
android:layout_width="match_parent"
android:layout_height="258dp"
android:layout_alignParentLeft="true"
android:layout_alignParentTop="true"
android:layout_marginLeft="25dp"
android:layout_marginTop="78dp"
android:text="This is first Activity"
android:background="@drawable/ic_launcher"
android:textAppearance="?android:attr/textAppearanceLarge" />

<Button
android:id="@+id/next"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_alignLeft="@+id/textView1"
android:layout_alignParentBottom="true"
android:layout_marginBottom="20dp"
android:text="Next" />

</RelativeLayout>
Second_Activity


<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="@drawable/background1"
android:orientation="vertical" >

<TextView
android:id="@+id/textView1"
android:layout_width="match_parent"
android:layout_height="250dp"
android:gravity="center"
android:text="Welcome to the second Activity"
android:textAppearance="?android:attr/textAppearanceLarge" />

</LinearLayout>
AndroidManifest


<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.example.creating_action_button"
android:versionCode="1"
android:versionName="1.0" >

<uses-sdk
android:minSdkVersion="8"
android:targetSdkVersion="17" />

<application
android:allowBackup="true"
android:icon="@drawable/ic_launcher"
android:label="@string/app_name"
android:theme="@style/AppTheme" >
<activity
android:name="com.example.creating_action_button.MainActivity"
android:label="@string/app_name" >
<intent-filter>
<action android:name="android.intent.action.MAIN" />

<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
<activity
android:name="com.example.creating_action_button.second_activity"
android:label="@string/app_name" >
<intent-filter>
<action android:name="com.example.creating_action_button.second" />

<category android:name="android.intent.category.DEFAULT" />
</intent-filter>
</activity>
</application>

</manifest>
