136 Java Android Program to Demonstrate Button with Rounded Corners

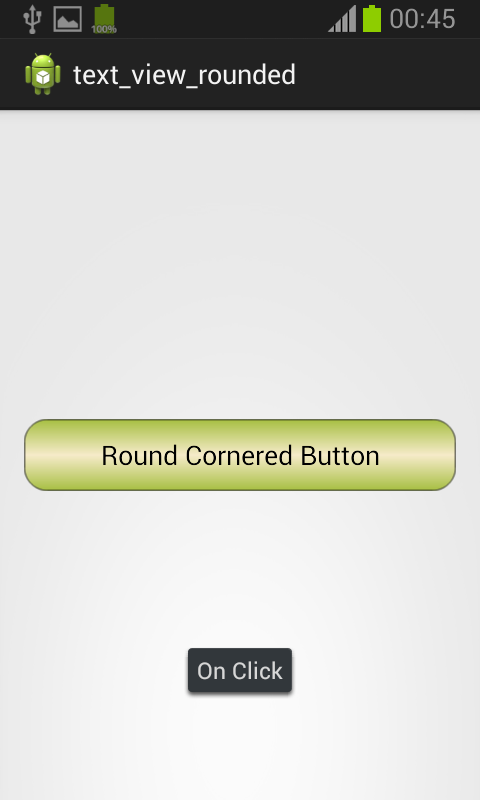

Here is source code of the Program to Demonstrate Button with Rounded Corners in Android. The program is successfully compiled and run on a Windows system using Eclipse Ide. The program output is also shown below.
In order to Demonstrate Button with Rounded Corners i have defined a style for my text view in /res/drawable folder with name mystyle and applied this as a background to my Button , the following code demonstrates this.
Main Activity
package com.example.text_view_rounded;
import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;
import android.view.View;
import android.widget.Button;
import android.widget.Toast;
import android.widget.VideoView;
public class MainActivity extends Activity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
Button but = (Button) findViewById(R.id.button1);
but.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// TODO Auto-generated method stub
Toast.makeText(getApplicationContext(), "On Click",
Toast.LENGTH_LONG).show();
}
});
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.main, menu);
return true;
}
}
mystyle
<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
<item android:state_focused="true" android:state_pressed="true"><shape>
<stroke android:width="2.3dp" android:color="#a7bf42" />
<corners android:radius="10dp" />
</shape></item>
<item android:state_focused="false" android:state_pressed="true"><shape>
<stroke android:width="2.3dp" android:color="#a7bf42" />
<corners android:radius="10dp" />
</shape></item>
<item android:state_focused="true" android:state_pressed="false"><shape>
<stroke android:width="0.7dp" android:color="#000000" />
<corners android:radius="15dp" />
</shape></item>
<item android:state_focused="false" android:state_pressed="false"><shape>
<gradient android:angle="270" android:centerColor="#F6EBC9" android:endColor="#a7bf42" android:startColor="#a7bf42" />
<stroke android:width="0.7dp" android:color="#000000" />
<corners android:radius="15dp" />
</shape></item>
<item android:state_enabled="true"><shape>
<padding android:bottom="4dp" android:left="4dp" android:right="4dp" android:top="4dp" />
</shape></item>
</selector>
Activity_Main
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingBottom="@dimen/activity_vertical_margin"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
tools:context=".MainActivity" >
<Button
android:id="@+id/button1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentLeft="true"
android:layout_alignParentRight="true"
android:layout_centerVertical="true"
android:text="Round Cornered Button"
android:background="@drawable/mystyle"/>
</RelativeLayout>
