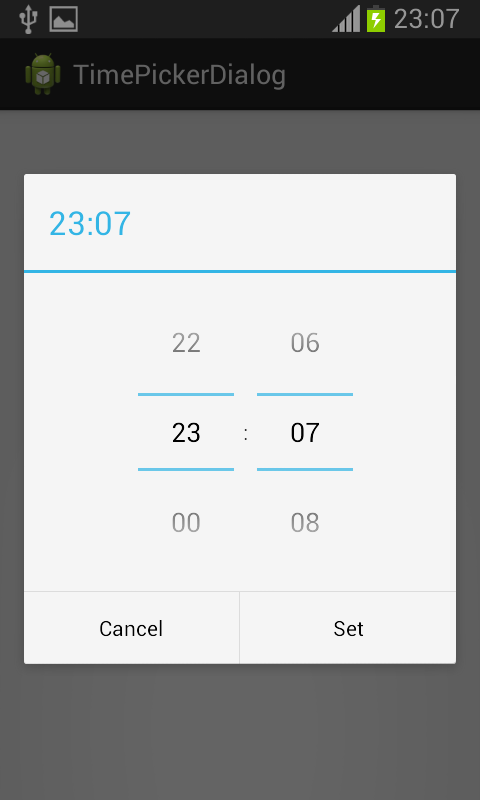

Here is source code of the Program to Demonstrate Time Picker Dialog in Android. The program is successfully compiled and run on a Windows system using Eclipse Ide. The program output is also shown below.
Main Activity

package com.example.timepickerdialog;

import java.util.Calendar;

import android.annotation.SuppressLint;
import android.app.Activity;
import android.app.Dialog;
import android.app.DialogFragment;
import android.app.TimePickerDialog;
import android.os.Bundle;
import android.text.format.DateFormat;
import android.view.Menu;
import android.view.View;
import android.widget.Button;
import android.widget.TimePicker;

@SuppressLint("NewApi")
public class MainActivity extends Activity {

@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
Button button = (Button) findViewById(R.id.button1);
button.setOnClickListener(new View.OnClickListener() {

@Override
public void onClick(View v) {
// TODO Auto-generated method stub
DialogFragment newFragment = new mytimepicker();
newFragment.show(getFragmentManager(), "timePicker");
}
});
}

@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.main, menu);
return true;
}

public static class mytimepicker extends DialogFragment implements
TimePickerDialog.OnTimeSetListener {

@Override
public Dialog onCreateDialog(Bundle savedInstanceState) {
final Calendar c = Calendar.getInstance();
int hour = c.get(Calendar.HOUR_OF_DAY);
int minute = c.get(Calendar.MINUTE);

return new TimePickerDialog(getActivity(), this, hour, minute,
DateFormat.is24HourFormat(getActivity()));
}

public void onTimeSet(TimePicker view, int hourOfDay, int minute) {
// do something with the time chosen.
}
}
}
