Informatica Admin Console

In this article, we will show you, How to use the Informatica Admin Console page to configure the Informatica Repository Service and Informatica Integration Service.

In order to open the Informatica Admin Console, Please Go to the Start menu -> Programs -> Informatica -> Server -> Informatica Administrator home page.

NOTE: Please refer How to install Informatica article to understand the steps involved in configuring the Informatica Server and Clients.

Informatica Admin Console

Once you click on the Administrator home page, the following page will be opened. Please provide the Username and password you specified while installing the Informatica Server. Please refer Step 6 in How to install Informatica article

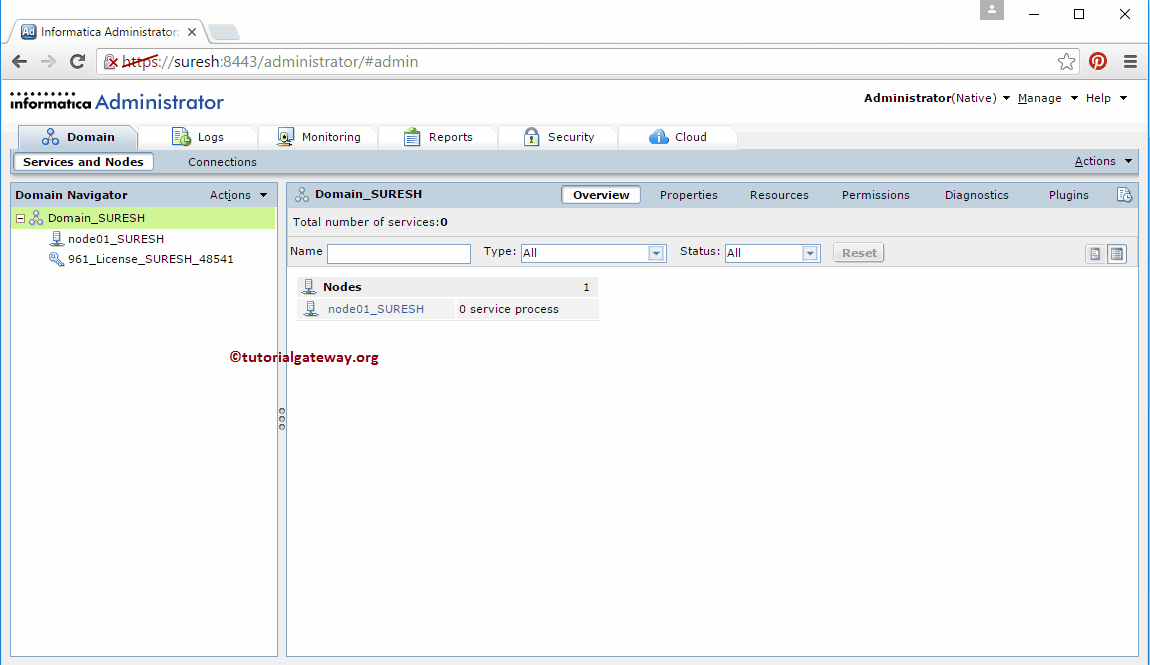

Once you log in successfully, you will enter into the Informatica Admin Console. Here, you can see the Domain name and licence key that we used for the installation

Configuring Informatica Repository Service

In order to create Informatica Repository Service, Right Click on the domain name -> New -> Power Center Repository Service.. as shown in the below screenshot.

Once you select the Power Center Repository Service.. option following window will be opened to create New Power Center Repository Service. Here we have multiple options such as:

• Name: Please provide any unique name for the Repository service.
• Description: Please provide a valid description of the repository service
• Location: By default, our domain will be selected automatically
• License: Select the Licence key from the drop-down list.
• Node: Select the node from the drop-down list.

Once you fill the details, Please click on the Next button to go to Step 2

Within step 2 we have to specify the database properties:

• Database type: Please select the database type you are using. Here we are using SQL Server 2014 so we are selecting MSSQLServer.
• Username: Please provide the Username to connect with the database
• Password: You have to provide the password of the above-mentioned database user
• Connection String: You can leave the server instance name and the database name.

Next, Please check to mark the version control option as shown below. This will enable us to change the Operating Mode from Exclusive to Normal mode

Next, Click on the Edit button beside the repository properties to edit or change the repository default properties.

By default Repository operating mode will be in exclusive. We have to change the Operating Mode from Exclusive to Normal mode.

NOTE: If you forgot to check to mark the version control option in the above step then, it will be impossible to change the operating mode.

Click OK button to change the Operating mode and then enable the Informatica Repository Service by clicking the below-shown button

Configuring Informatica Integration Service

In order to create Informatica Integration Service, Right Click on the domain name -> New -> Power Center Integration Service.. as shown in the below screenshot.

Once you select the Power Center integration Service.. option following window will be opened to create New Power Center Integration Service. Here we have multiple options such as:

• Name: Please provide any unique name for the Integration service.
• Description: Please provide a valid description of the Integration service
• Location: By default, our domain will be selected automatically
• License: Please select the Licence key from the drop-down list.
• Node: Please select the node from the drop-down list.

Once you fill the details, Please click on the Next button to go to Step 2

Within step 2 we have to specify the credentials:

• Power Center Repository Service: Here, you have to select the already created Power Center Repository Service. If you forgot to do so, First create it and then create Integration service.
• Username: Please provide the username to login Informatica Admin Console
• Password: Please provide the password to login Informatica Admin Console
• Data Movement Mode: Please leave it to default ASCII mode.

Once you fill the required details, Please click on the finish button to finish creating the New Power Center Integration Service

Once you finish creating the New Power Center Integration Service, you have to Enable the service by clicking the below-shown button

Well, we successfully configured the Informatica repository Service and Informatica Integration Service inside our Informatica Admin Console.
