What is HTTP Response?

The interaction between the client and the server propagates through the HTTP protocol. Moreover, we have already understood one end of this communication, i.e., the HTTP Requests in our previous article. Subsequently, we now need to understand the other end, which is the HTTP Response. Consequently, in this post, we will cover below points-

• What is HTTP Response?
  • What is the structure of an HTTP Response?
  • And, what are different HTTP Response Status Codes?

What is HTTP Response?

HTTP Response is the server's information as a result of the client's request. Additionally, it acts as an acknowledgment that the performance of the requested action is successful. In case there is an error in carrying out the client's request, the server responds with an error message. Moreover, the HTTP responses come as plain text formatted in either JSON or XML format, just like the HTTP requests. In the next section, let us see how an HTTP response looks.

What is the structure of an HTTP Response?

By looking at the various status codes above, we can understand the response from the server. However, the HTTP Response not only contains the response status code but some other components as well. We will discuss them in this section. The composition of HTTP Response looks like this-

1. Status Line
2. Zero or more headers
3. An optional message body

Subsequently, let us understand these different components using the same API that we used in the HTTP Request article. Additionally, to reiterate, we will be using the below URL-

https://bookstore.toolsqa.com/BookStore/v1/Books

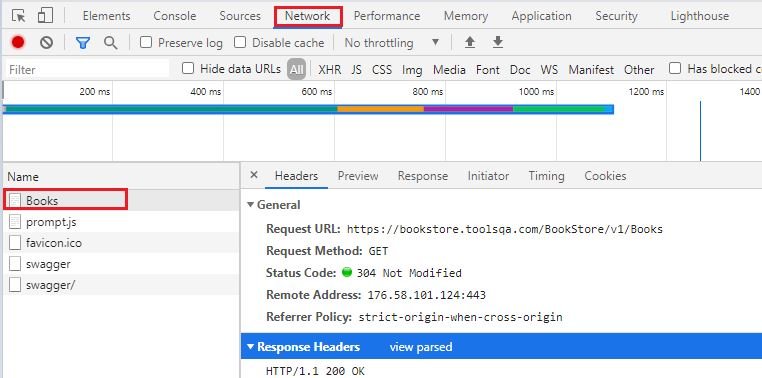

Once you hit the above URL in your browser window and open the Network tab in the developer tools parallelly, you will see some printed messages. Additionally, you may select Books as highlighted in the image below-

Consequently, let's move ahead and understand the components.

Status Line

The status line in an HTTP response consists of 3 parts-

• HTTP Protocol Version
• Status Code
• Reason Phrase

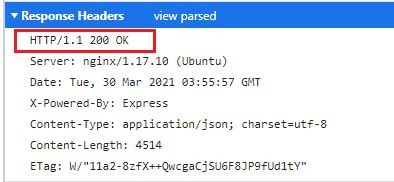

It is the first line in the response section. In addition to that, below is the Status-Line for the response we received to our request.

HTTP Protocol Version

As already discussed in the previous post, the HTTP protocol version specifies the message format along with the sender's ability to understand further communication. Similar to the HTTP request, the HTTP protocol version in the response is 1.1.

Status Code

Every HTTP response comes with a status code. Moreover, this status code is a 3-digit integer value. The first digit represents the class of the response. Moreover, the last 2 digits do not have any categorical value. There are five distinct values that the first digit of the status code can take. In our example, the status code is 200. But that is not the only status code your response may come with. Additionally, the below table summarizes the different status codes you might come across.

• 1xx: Informational: It means the request was received and the process is continuing.
• 22xx: Success: It means the action received was successful, understandable, and acceptable.
• 33xx: Redirection: This means further action must be taken to complete the request.
• 44xx: Client Error: It means the request contains incorrect syntax or cannot fulfill.
• 55xx: Server Error: It means the server failed to fulfill/ complete an apparently valid request.

Reason Phrase

Reason phrase gives/ provides a short textual description of the status code. It is like a status text that resonates with the status code. In our example, the reason phrase is OK.

Response Header

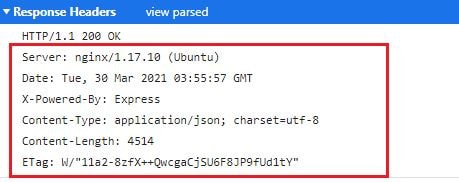

A response header is similar to the request header, which consists of additional information about the response. Additionally, a response may have 0 or more headers, but it is highly unlikely to have zero response headers. Moreover, the response headers are present after the status line and before the response body. Consequently, in our example, the response header is as below-

Let's briefly discuss the different response headers-

• Server: describes the software of the origin server
• Content-Type: depicts the type of content the response holds. In our example, its value application/JSON; charset=utf-8 means that the response is in the form of JSON. Additionally, the client should interpret it in the same manner.
• Content-Length: defines the length of the data, i.e., the number of bytes in the response body.

Response Body

The response body consists of the resource data requested by the client. In our example, we requested the book's data, and the response body consists of the different books present in the database along with their information.

As can be seen, the book list comes in response along with different book properties like its author, description, isbn, title, etc. Additionally, the message body helps the user with more information on the response, be it a valid response with data, some error in response, or the need for additional data from the client.

What are different HTTP Response Status Codes?

As seen above, Status codes separate into 5 different categories. Consequently, let's see those in details:

Subsequently, in the upcoming article, we will see some more concepts that will add to our base of learning RestAssured.

Key Takeaways

• To every client request, the server responds with an HTTP response.
• Moreover, we also understood the different HTTP response components along with their sub-components, like the HTTP Protocol version, status code, and reason phrase for the status line.
• Additionally, we saw that the status codes could start from only 5 distinct digits, and the server can send different status codes.
